Loading machine 9 mm
Technology is used for automatic final assembly of cartridge Pistol Cartridge.
Group of cartridge is formed by cartridge case, propelant and bullet.
Automatic station can be a part of assembly line for ammo production and service is provided by one operator.
The device can be produced for caliber 9×18 mm, 9×19 mm.
| Standard | Dynamic | |
|---|---|---|
| Type of machine | DL 900 90 | DL 900 300 |
| Final product | complete cartridge | complete cartridge |
| Input components | case with primer, propellant and bullet | case with primer, propellant and bullet |
| Concept | carousel machine – one rotating table | linear machine |
| Capacity | 90pcs / min | 300pcs / min |
| Power / Voltage | 5,5kW / 3x400V | 6kW / 3x400V |
| Process control | remote control PLC + Micro Tik support service | remote control PLC + Micro Tik support service |
| Air pressure | 6 bar | 6 bar |
| Dimensions | length 2,1 m height 2,7 m width 1,8 m | length 3,0 m height 3,1 m width 1,2 m |
| Weight of the machine | 2,6 t | 3,2 t |
| Feeder | two rotary feeders | two rotary feeders, one vibration feeder |
| Filling conveyor | option | option |
| Machine output of product | OK parts for box | OK parts for box |
| Process control | propellant check | propellant check |

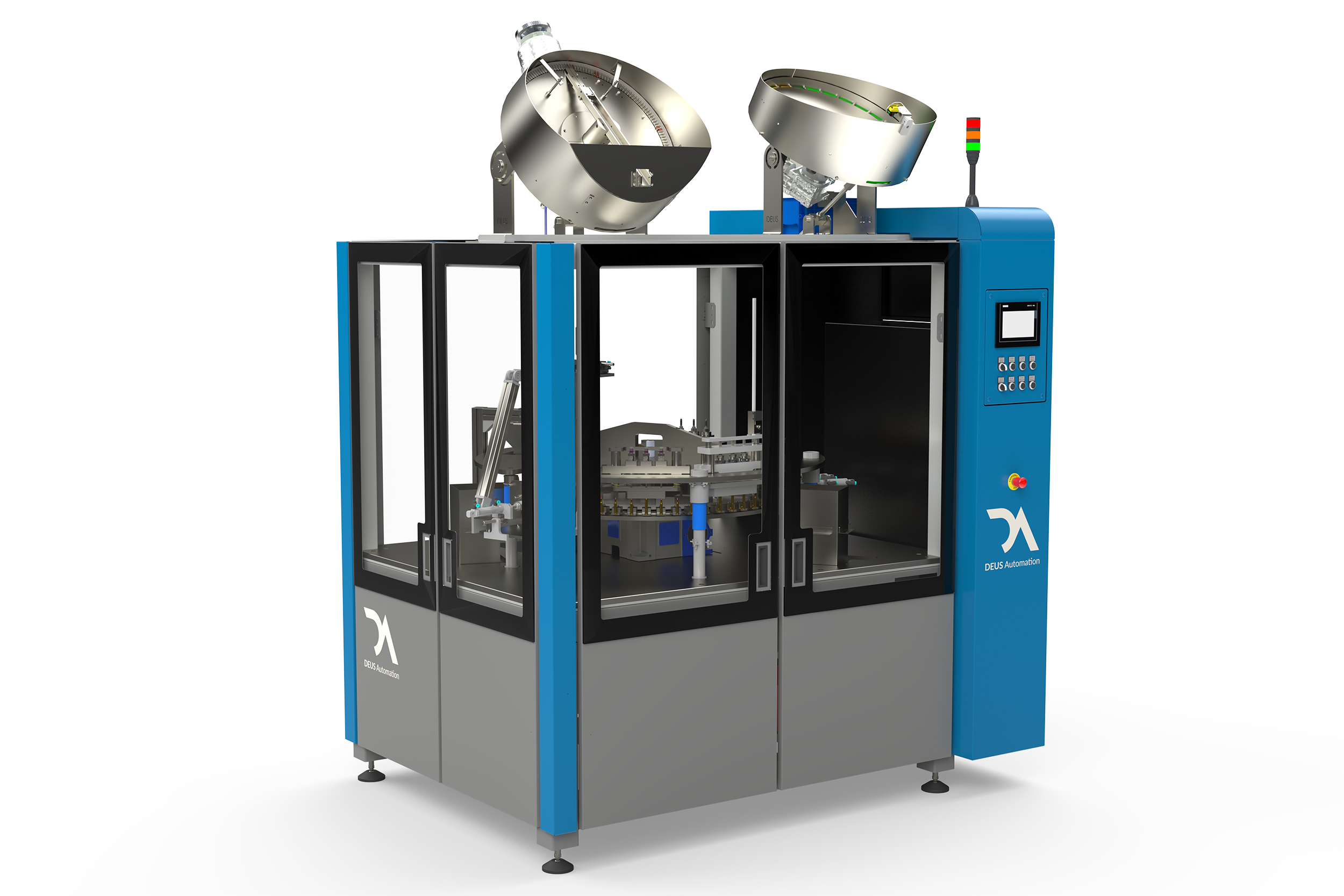

Standard loading machine DL 900 90

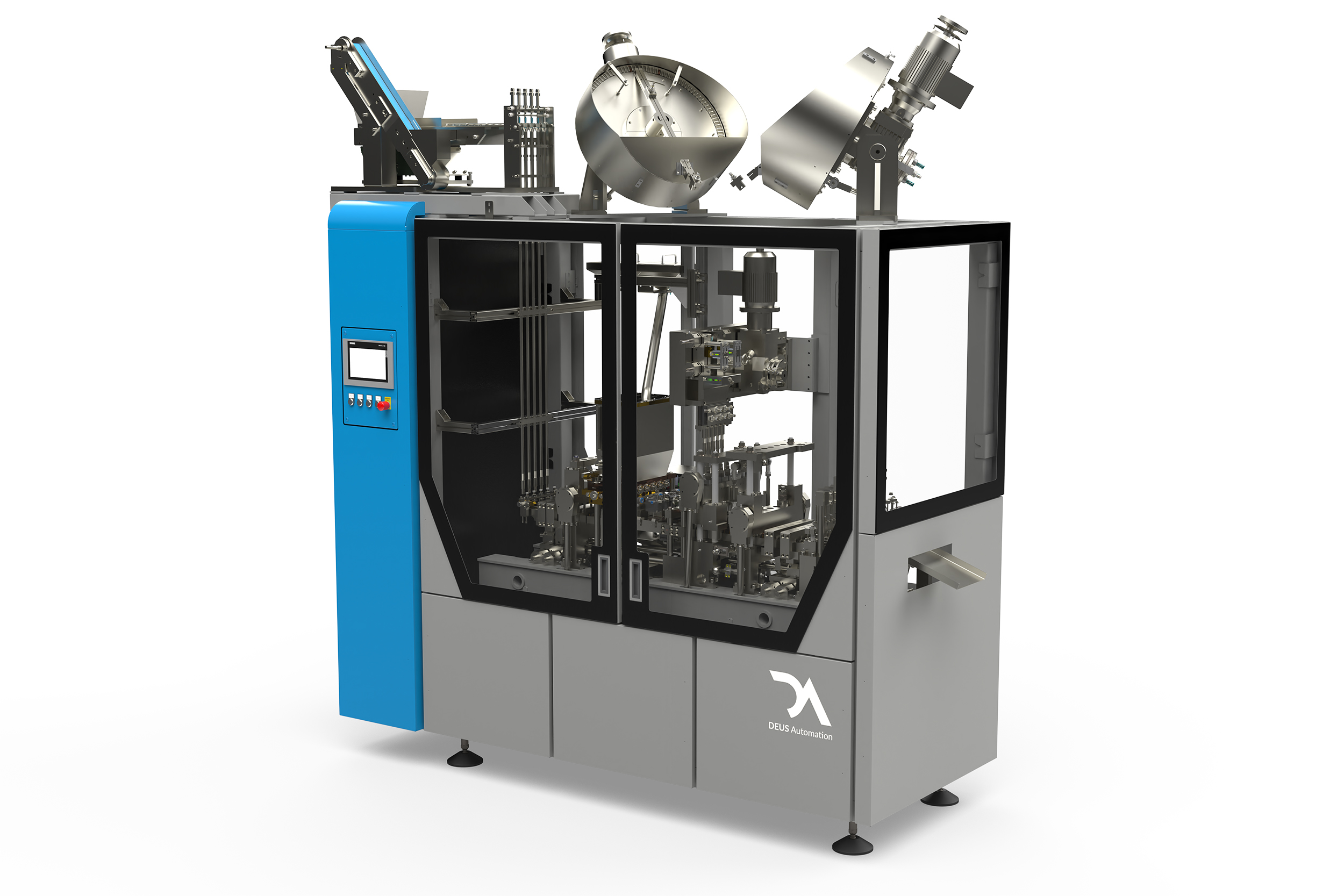

Dynamic loading machine DL 900 300
Loading machine 5,56 mm
Technology is used for automatic final assembly of cartridge Rifle Cartridge.
Group of cartridge is formed by cartridge case, propelant and bullet.
Automatic station can be a part of assembly line for ammo production and service is provided by one operator.
The device can be produced for caliber 5,56×45 mm and .223REM.
| Standard | Dynamic | |
|---|---|---|
| Type of machine | DL 556 90 | DL 556 250 |
| Final product | complete cartridge | complete cartridge |
| Input components | case with primer, propellant and bullet | case with primer, propellant and bullet |
| Concept | carousel machine – one rotation desk | linear machine |
| Capacity | 90pcs / min | 250pcs / min |
| Power / Voltage | 5,5kW / 3x400V | 6kW / 3x400V |
| Process control | remote control PLC + Micro Tik support service | remote control PLC + Micro Tik support service |
| Air pressure | 6 bar | 6 bar |
| Dimensions | length 2,1 m height 2,7 m width 1,8 m | length 3,0 m height 3,1 m width 1,2 m |
| Weight of the machine | 2,6 t | 3,4 t |
| Feeder | two rotary feeders | four rotary feeders |
| Filling conveyor | option | option |
| Machine output of product | OK parts for box | OK parts for box |
| Process control | propellant check | propellant check |
Standard loading machine DL 556 90

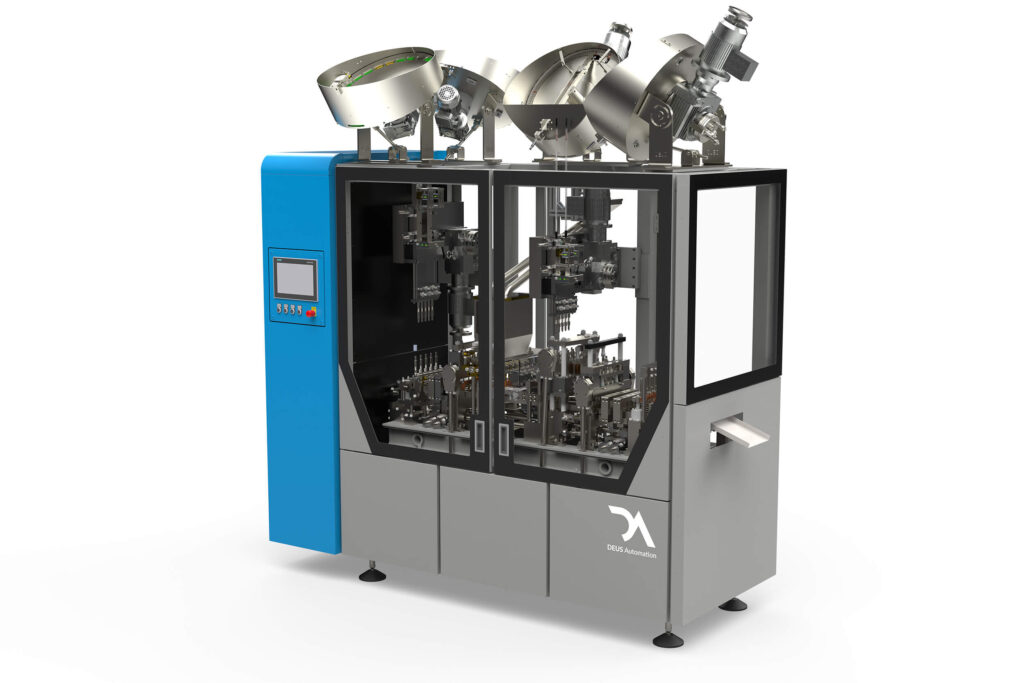

Dynamic loading machine DL 556 250
Loading machine 7,62 mm
Technology is used for automatic final assembly of cartridge Rifle Cartridge.
Group of cartridge is formed by cartridge case, propelant and bullet.
Automatic station can be a part of assembly line for ammo production and service is provided by one operator.
The device can be produced for caliber 7,62×39 mm and 7,62×51 mm.
| Standard | Dynamic | |
|---|---|---|
| Type of machine | DL 762 90 | DL 762 250 |
| Final product | complete cartridge | complete cartridge |
| Input components | case with primer, propellant and bullet | case with primer, propellant and bullet |
| Concept | carousel machine – one rotation desk | linear machine |
| Capacity | 90pcs/min | 250pcs/min |
| Power/Voltage | 5,5kW/3x400V | 6kW/3x400V |
| Process control | remote control PLC + Micro Tik support service | remote control PLC + Micro Tik support service |
| Air pressure | 6 bar | 6 bar |
| Dimensions | length 2,1 m height 2,7 m width 1,8 m | length 3,0 m height 3,1 m width 1,4 m |
| Weight of the machine | 3,0 t | 3,6 t |
| Feeder | two rotary feeders | four rotary feeders |
| Filling conveyor | option | option |
| Machine output of product | OK parts for box | OK parts for box |
| Process control | propellant check | propellant check |
Standard loading machine 762 90
Dynamic loading machine 762 250
