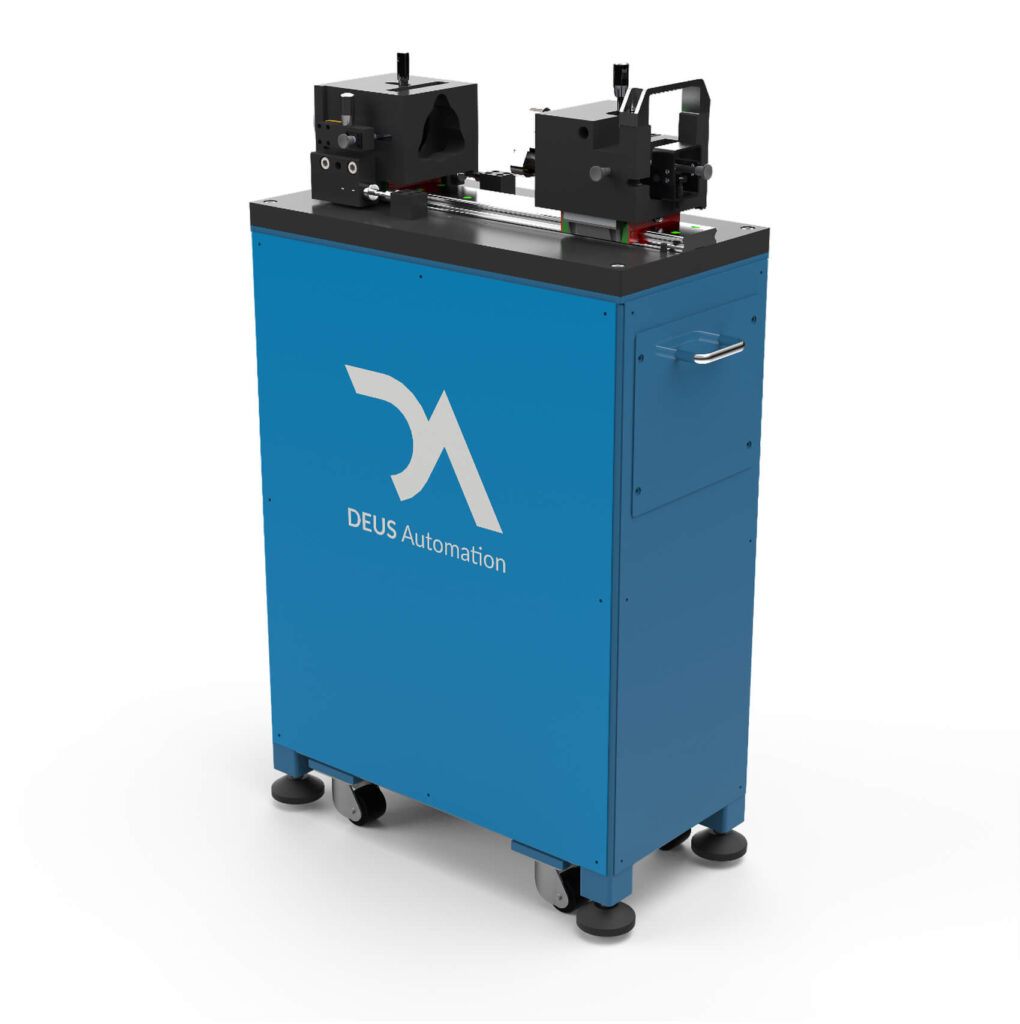

Universal balistic stand
Universal ballistic stand for clamping and testing of ballistic barrels, for testing of ammunition for barrel of the gun rifles (pistols, revolvers and shotguns) and for cartridges with rim fire and for cartridges for expansion apparatus.
Station is capable of clamping ballistic barrels from various manufacturers.
Equipment from Kistler company is used for measurement.
The Kistler system is according to NATO Standard and C.I.P. Standard.
The device can be produced for caliber 9 mm, 5,56 mm, 7,62 mm, 12,7 mm.
| Standard | |
|---|---|
| Type of machine | DUS 900 DUS 556 DUS 762 DUS 127 |
| Final product | for cartridges 9 x 18 mm, 9 x 19 mm, 5,45 x 39 mm , 5,56 x 45 mm, 7,62 x 39 mm, 7,62 x 51 mm, 7,62 x 54 mm |
| input components | for cartridges 9 x 18 mm, 9 x 19 mm, 5,45 x 39 mm , 5,56 x 45 mm, 7,62 x 39 mm, 7,62 x 51 mm, 7,62 x 54 mm |
| Concept | stand with accessories |
| Special components | KISTLER measuring system |
| Power / Voltage | 1kW / 230V |
| Process control | KISTLER remote control PLC + MicroTik support service |
| Air pressure | NO |
| Dimensions | length 1,2 m height 0,96 m width 1,4 m |
| Weight of the machine | 80 kg |
| Feeder | NO |
| Service | 1 operator |
Universal balistic stands
DUS 900 / DUS 556 / DUS 762 / DUS 127
